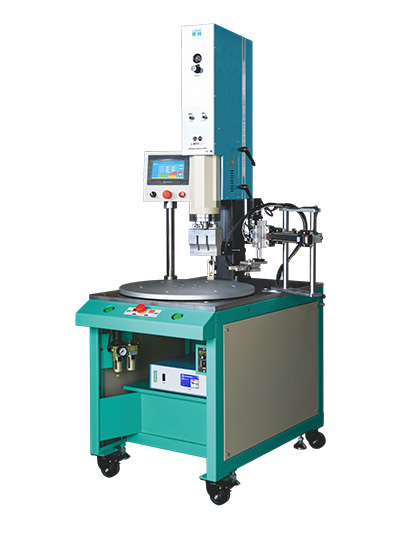

15KHZ3200轉盤機
技術規格
TECHNICAL SPECIFICATIONS
|
機型 Model |
L3000 Standard ?動轉盤機 |
L4000 Standard ?動轉盤機 |
||||
| ?位 Tray |
4?位/6?位/8?位/10?位/12?位 |
|||||
|
頻率 Frequency |
20kHz |
15kHz |
||||
|
功率 Power |
2000W |
2600W |
2600W |
3200W |
4200W |
|
|
輸?電壓 Input Voltage |
AC220V |
AC220V |
AC220V |
AC220V |
AC220V |
|
|
?缸規格 Cylinder Size（mm） |
63×75 |
63×75 |
63×75 |
80×75 |
100×100 |
|
|
輸出時間 Oscillation Time |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
|
|
輸??壓 Air Pressure |
＞1,≤7bar |
＞1,≤7bar |
＞1,≤7bar |
＞1,≤7bar |
＞1,≤7bar |
|
|
轉盤直徑 Turntable Diameter |
Φ600mm |
Φ600mm |
Φ600mm |
Φ600mm |
Φ600mm |
|
|
操作開關 Operation Switch |
雙?啟動，前部有緊急制動，也可附加外部開關 Two-hand release,emergency stop button at the front,and adding external control switch supported. |
|||||
|
外形尺? Size(mm) |
壓機 Press |
1070×646×1812 |
1070×646×1812 |
1070×646×1812 |
1070×646×1812 |
970×760×2270 |
|
電箱 Generator |
415×256×116 |
415×256×116 |
415×256×116 |
425×235×118 |
425×235×118 |
|
|
凈重 Weight |
機械臂寬 Arm Length |
916mm |
916mm |
916mm |
916mm |
916mm |
|
壓機 Press |
195kg |
195kg |
195kg |
195kg |
290kg |
|
|
電箱 Generator |
7.5kg |
7.5kg |
7.5kg |
10kg |
10kg |
|
- 本參數資料中，機器焊接面積參數僅供參考，具體情況需根據焊接面的形狀、落差、塑膠件材質和焊線設計而確定。
